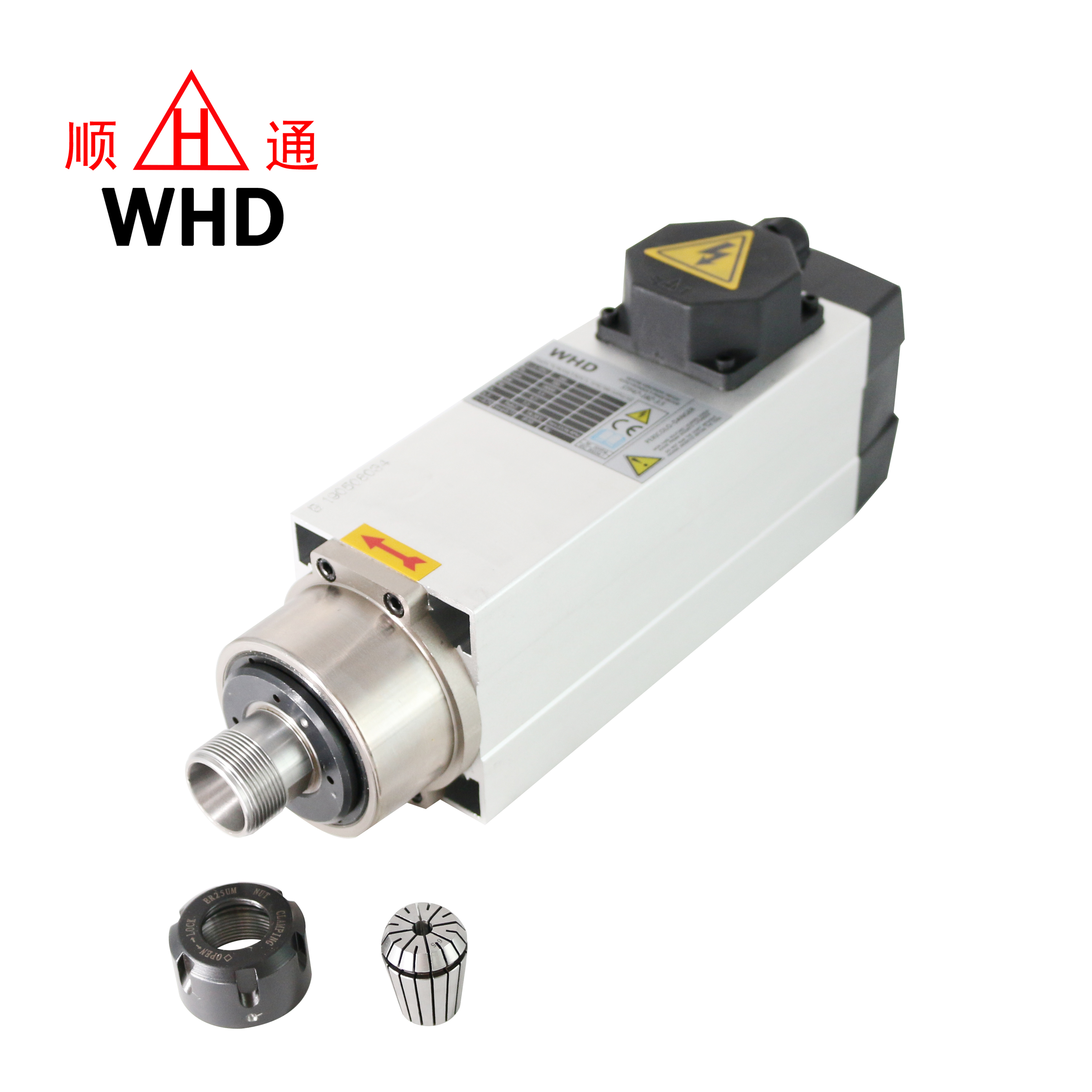

Air Cooled Spindle Motor
WHD supplies kinds of High Speed Air Cooled Spindle Motor for CNC engraving and CNC wood routing,including Round CNC Spindle Motor, Square CNC Spindle Motor, CNC Spindle Motor with Flange, for your any applications of routing and engraving.
With over 20 years’ experience of producing and selling spindle motors, WHD spindle motors have been exported to USA, Europe,Brazil, India, Russia etc. all over the world.
Looking forward to cooperating with you soon.
| Model | STF47-82-3.5 |
| Power | 3.5kW |
| Speed | 18000rpm |
| Voltage | 380V/220V |
| Current | 7.2A/12.1A |
| Frequency | 300Hz |
| Joint of nose | ER25(φ3.175-φ16) |
| Collet nut | 3.175mm, 6mm,12.7mm |
| Cool | Air Cooling |
| Lub | Grease |
| Phase | 3 |
| Torque | 1.59Nm |
| Thermal class | F |
| Protection class | IP50 |
| Weight | 8.4KG |
| Warranty | Bearings for half a year, other parts for one year |

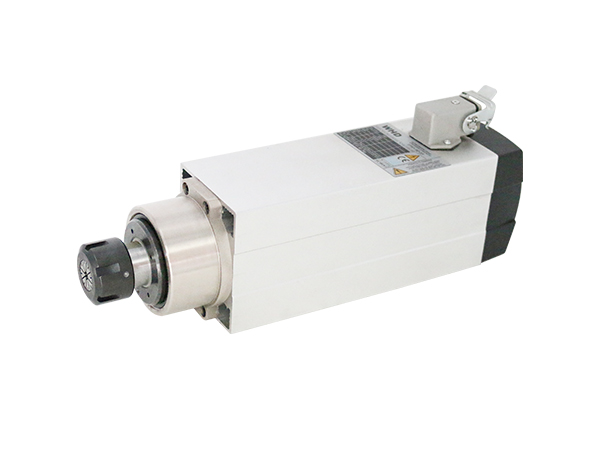

Square Air Cooled Spindle Motor More Specifications:
|
Type No. |
Product Data |
Joint of Nose |
|
STF47-82-1.5 |
1.5 kw, 220V/380V, 300 Hz, 18000 RPM |
ER 20 |
|
STF47-82-2.2 |
2.2 kw, 220V/380V, 300 Hz, 18000 RPM |
ER 20 |
|
STF47-82-3.5 |
3.5 kw, 220V/380V, 300 Hz, 18000 RPM |
ER 25 |
|
STF60-103-4.5 |
4.5 kw, 220V/380V, 300 Hz, 18000 RPM |
ER 32 |
|
STF60-103-6.0 |
6.0 kw, 220V/380V, 300 Hz, 18000 RPM |
ER 32 |
|
STF60-103-7.5 |
7.5 kw, 220V/380V, 300 Hz, 18000 RPM |
ER 32 |
|
STF86-150-12 |
12 kw, 380V, 400 Hz, 12000 RPM |
ER 40 |
· Woodworking
· Plastic Acrylic
Additional Information:
· Payment Terms: T/T
· Port of loading: Shanghai,China
· Package: Foam Box in Carton Box with Strong Strips across Carton Box
