Air Cooled Spindle Motor

WHD supplies kinds of High Speed Air Cooled Spindle Motor for CNC engraving and CNC wood routing,including Round CNC Spindle Motor, Square CNC Spindle Motor, CNC Spindle Motor with Flange, for your any applications of routing and engraving.

With over 20 years’ experience of producing and selling spindle motors, WHD spindle motors have been exported to USA, Europe,Brazil, India, Russia etc. all over the world.

Looking forward to cooperating with you soon.

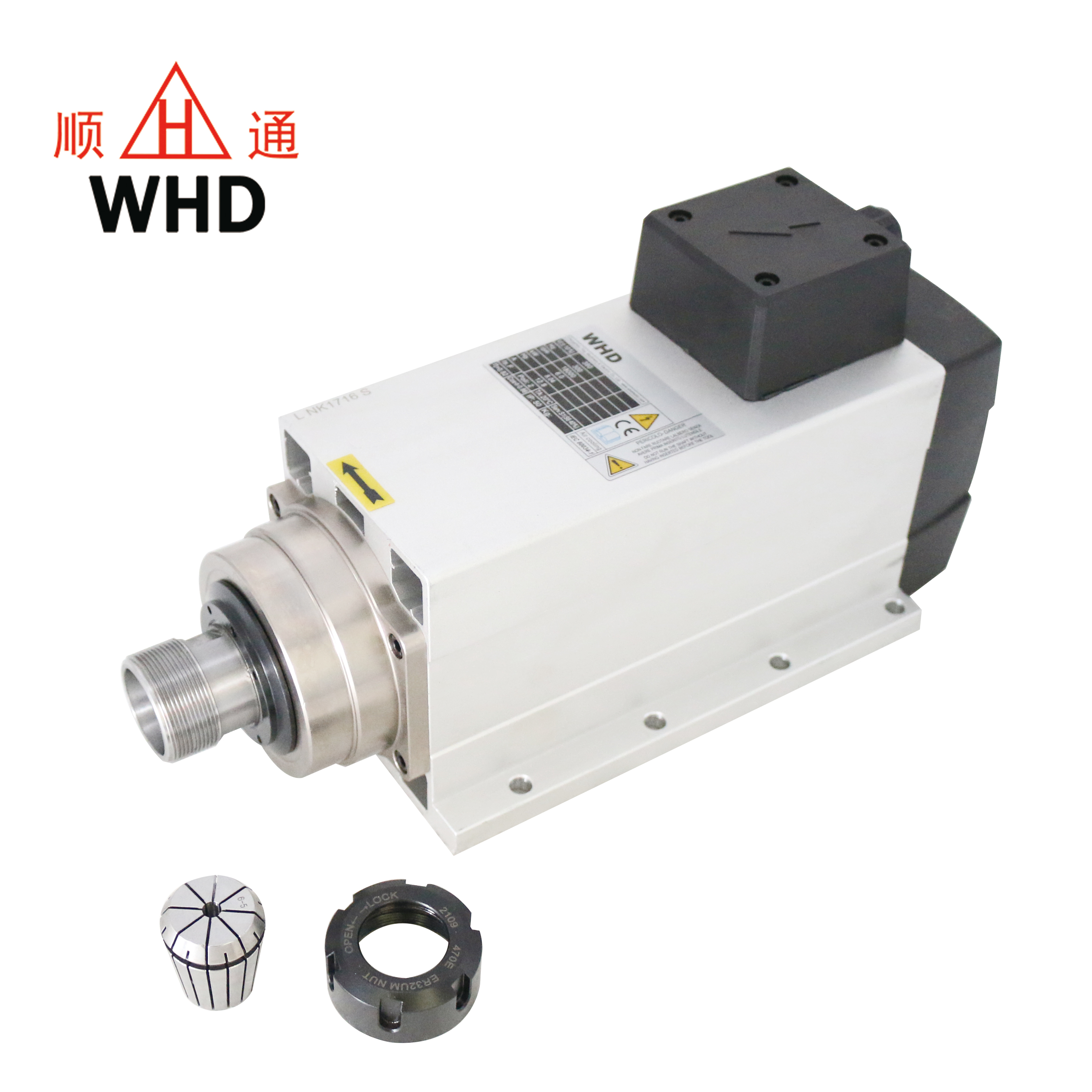

Spindle Motor 6.0kw with Flange

Model STF52-156B-6.0
Power 6.0kW
Speed 18000rpm
Voltage 380V/220V
Current 12.8A/21.3A
Frequency 300Hz
Joint of nose ER32(φ3.175-φ20)
Collet nut 3.175mm, 6mm,12.7mm,20mm
Cool Air Cooling
Lub Grease
Brand

WHD or OEM

Phase 3
Torque 2.78Nm
Thermal class F
Protection class IP50
Weight 13.9KG

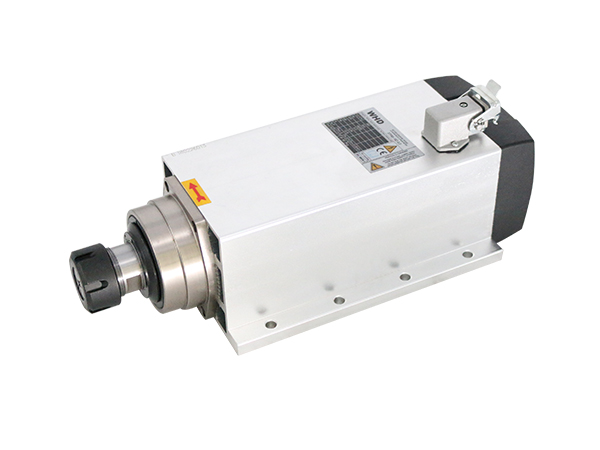

Square Air Cooled Spindle Motor with flange More Specifications:

Type No.

Product Data

Joint of Nose

STF47-110B-1.5

1.5 kw, 220V/380V300 Hz, 18000 RPM

ER 20

STF52-134B-2.2

2.2 kw, 220V/380V, 300 Hz, 18000 RPM

ER 20

STF52-134B-3.5

3.5 kw, 220V/380V, 300 Hz, 18000 RPM

ER 20/25

STF52-156B-4.5

4.5 kw, 220V/380V, 300 Hz, 18000 RPM

ER 32

STF52-156B-6.0

6.0 kw, 220V/380V, 300 Hz, 18000 RPM

ER 32

STF52-156B-7.5

7.5 kw, 220V/380V, 300 Hz, 18000 RPM

ER 32

STF60-135B-4.5

4.5 kw, 220V/380V, 300 Hz, 18000 RPM

ER 32

STF60-135B-6.0

6.0 kw, 220V/380V, 300 Hz, 18000 RPM

ER 32

STF60-135B-7.5

7.5 kw, 220V/380V, 300 Hz, 18000 RPM

ER 32

Basing on our customers’ different requirements, WHD supplies different spindle motors with 220V or 380V or 220/380V for choices.

Applications:

· Woodworking

· Plastic Acrylic

Additional Information:

· Payment Terms: T/T

· Port of loading: Shanghai,China

· Package: Foam Box in Carton Box with Strong Strips across Carton Box.

Download attachments: Spindle Motor 6.0kw with Flange
