Water Cooled Spindle Motor

As one leading producer of CNC Spindle Motor in China, WHD has over 20 years’ experience in producing and selling Water Cooled Spindle Motor, for kinds of CNC applications areas.

By now, our spindle motors have been exported to USA, Europe,Brazil, India, Russia etc. all over the world.

Looking forward to cooperating with you soon.

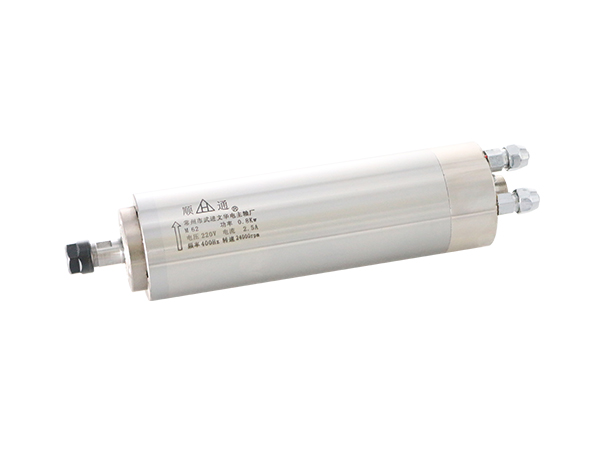

Water Cooled Spindle Motor 0.8kw for Metal
Model STM62-24Z/0.8
Power 0.8kW
Diameter φ62mm
Speed 24000rpm
Voltage 220V
Current 2.5A
Frequency 400Hz
Joint of nose ER11(φ3.175-φ7)
Collet nut 3.175mm, 4mm,6mm
Cool Water cooling
Lub Grease
Brand

WHD or OEM

Phase 3
Torque 0.32Nm
Thermal class F
Protection class IP54
Weight 3.7KG

Water Cooled Spindle Motor for Metalworking More Specifications:

Type No.

Product Data

Joint of Nose

STM62-36Z/0.8

0.8 kw, 220V, 600 Hz, 36000 RPM

ER 11

STM62-24Z/0.8

0.8 kw, 220V, 400 Hz, 24000 RPM

ER 11

STM80-24Z/1.5

1.5 kw, 220V, 400 Hz, 24000 RPM

ER 16

STM80-24Z/2.2

2.2 kw, 220V, 400 Hz, 24000 RPM

ER 20

STM110-24Z/4.0

4.0 kw, 380V400 Hz, 24000 RPM

ER 25

STM125-24Z/4.5

4.5 kw, 380V400 Hz, 24000 RPM

ER 25

STM125-24Z/5.5Z

5.5 kw, 380V400 Hz, 24000 RPM

ER 25

STM125-18Z/7.5Z

7.5 kw, 380V, 600 Hz, 18000 RPM

ER 32

Applications:

· Metal Working

Additional Information:

· Payment Terms: T/T

· Port of loading: Shanghai,China

· Package: Foam Box in Carton Box with Strong Strips across Carton Box.
