Air Cooled Spindle Motor
WHD supplies kinds of High Speed Air Cooled Spindle Motor for CNC engraving and CNC wood routing,including Round CNC Spindle Motor, Square CNC Spindle Motor, CNC Spindle Motor with Flange, for your any applications of routing and engraving.
With over 20 years’ experience of producing and selling spindle motors, WHD spindle motors have been exported to USA, Europe,Brazil, India, Russia etc. all over the world.
Looking forward to cooperating with you soon.

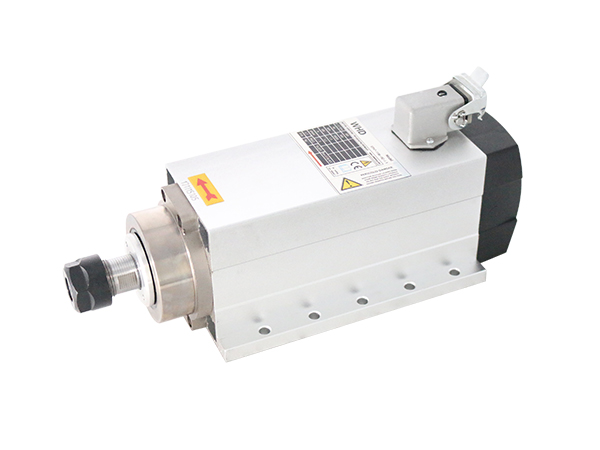

Spindle Motor 1.5kw with Flange
| Model | STF47-110B-1.5 |
| Power | 1.5kW |
| Speed | 18000rpm |
| Voltage | 380V/220V |
| Current | 3.2A/5.8A |
| Frequency | 300Hz |
| Joint of nose | ER20(φ3.175-φ13) |
| Collet nut | 3.175mm, 6mm,12.7mm |
| Cool | Air Cooling |
| Lub | Grease |
| Brand |
WHD or OEM |
| Phase | 3 |
| Torque | 0.8Nm |
| Thermal class | F |
| Protection class | IP50 |
| Weight | 7.2KG |
|
Type No. |
Product Data |
Joint of Nose |
|
STF47-110B-1.5 |
1.5 kw, 220V/380V, 300 Hz, 18000 RPM |
ER 20 |
|
STF52-134B-2.2 |
2.2 kw, 220V/380V, 300 Hz, 18000 RPM |
ER 20 |
|
STF52-134B-3.5 |
3.5 kw, 220V/380V, 300 Hz, 18000 RPM |
ER 25 |
|
STF52-156B-4.5 |
4.5 kw, 220V/380V, 300 Hz, 18000 RPM |
ER 32 |
|
STF52-156B-6.0 |
6.0 kw, 220V/380V, 300 Hz, 18000 RPM |
ER 32 |
|
STF52-156B-7.5 |
7.5 kw, 220V/380V, 300 Hz, 18000 RPM |
ER 32 |
|
STF60-135B-4.5 |
4.5 kw, 220V/380V, 300 Hz, 18000 RPM |
ER 32 |
|
STF60-135B-6.0 |
6.0 kw, 220V/380V, 300 Hz, 18000 RPM |
ER 32 |
|
STF60-135B-7.5 |
7.5 kw, 220V/380V, 300 Hz, 18000 RPM |
ER 32 |
Basing on our customers’ different requirements, WHD supplies different spindle motors with 220V or 380V or 220/380V for choices.
Applications:
· Woodworking
· Plastic Acrylic
Additional Information:
· Payment Terms: T/T
· Port of loading: Shanghai,China
· Package: Foam Box in Carton Box with Strong Strips across Carton Box.
