Water Cooled Spindle Motor
As one leading producer of CNC Spindle Motor in China, WHD has over 20 years’ experience in producing and selling Water Cooled Spindle Motor, for kinds of CNC applications areas.
By now, our spindle motors have been exported to USA, Europe,Brazil, India, Russia etc. all over the world.
Looking forward to cooperating with you soon.

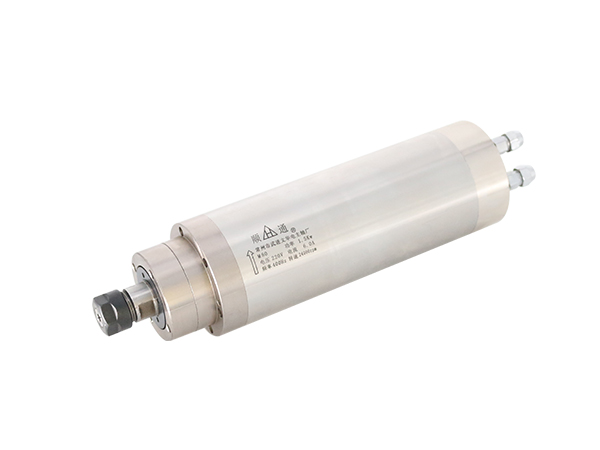

Water Cooled Spindle Motor 1.5kw for Metal| Model | STM80-1.5 |
| Power | 1.5kW |
| Diameter | φ80mm |
| Speed | 24000rpm |
| Voltage | 220V |
| Current | 6.0A |
| Frequency | 400Hz |
| Joint of nose | ER16(φ3.175-φ10) |
| Collet nut | 3.175mm, 4mm,6mm |
| Cool | Water cooling |
| Lub | Grease |
| Brand |
WHD or OEM |
| Phase | 3 |
| Torque | 0.6Nm |
| Thermal class | F |
| Protection class | IP54 |
| Weight | 7.1KG |
Water Cooled Spindle Motor for Metalworking More Specifications:
|
Type No. |
Product Data |
Joint of Nose |
|
STM62-36Z/0.8 |
0.8 kw, 220V, 600 Hz, 36000 RPM |
ER 11 |
|
STM62-24Z/0.8 |
0.8 kw, 220V, 400 Hz, 24000 RPM |
ER 11 |
|
STM80-24Z/1.5 |
1.5 kw, 220V, 400 Hz, 24000 RPM |
ER 16 |
|
STM80-24Z/2.2 |
2.2 kw, 220V, 400 Hz, 24000 RPM |
ER 20 |
|
STM110-24Z/4.0 |
4.0 kw, 380V, 400 Hz, 24000 RPM |
ER 25 |
|
STM125-24Z/4.5 |
4.5 kw, 380V, 400 Hz, 24000 RPM |
ER 25 |
|
STM125-24Z/5.5Z |
5.5 kw, 380V, 400 Hz, 24000 RPM |
ER 25 |
|
STM125-18Z/7.5Z |
7.5 kw, 380V, 600 Hz, 18000 RPM |
ER 32 |
Applications:
· Metal Working
Additional Information:
· Payment Terms: T/T
· Port of loading: Shanghai,China
· Package: Foam Box in Carton Box with Strong Strips across Carton Box.
