Water Cooled Spindle Motor
As one leading producer of Spindle Motor in China, WHD has over 20 years’ experience in producing and selling Water Cooled Spindle Motor,for kinds of CNC applications areas.
By now, our spindle motors have been exported to USA, Europe,Brazil, India, Russia etc. all over the world.
Looking forward to cooperating with you soon.

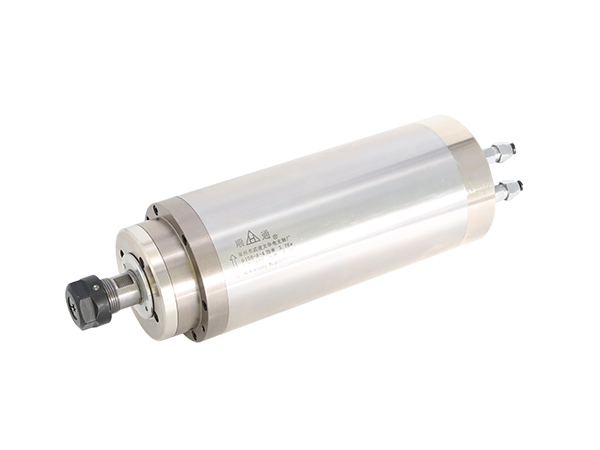

Water Cooled Spindle Motor 3.7kw
| Model | STZ100-3.7 |
| Power | 3.7kW |
| Diameter | φ100mm |
| Speed | 24000rpm |
| Voltage | 380V/220V |
| Current | 7.0A/12.0A |
| Frequency | 400Hz |
| Joint of nose | ER20(φ3.175-φ13) |
| Collet nut | 3.175mm,4mm,6mm,12.7mm |
| Cool | Water cooling |
| Lub | Grease |
| Brand |
WHD or OEM |
| Phase | 3 |
| Torque | 1.59Nm |
| Thermal class | F |
| Protection class | IP54 |
| Weight | 8.8KG |
|
Type No. |
Product Data |
Joint of Nose |
|
STZ65-0.8 |
0.8 kw, 220V, 400 Hz, 24000 RPM |
ER 11 |
|
STZ80-1.5 |
1.5 kw, 220V, 400 Hz, 24000 RPM |
ER 11/16 |
|
STZ80-2.2 |
2.2 kw, 220V/380V, 400 Hz, 24000 RPM |
ER 20 |
|
STZ100-3.2 |
3.2 kw, 220V/380V, 400 Hz, 24000 RPM |
ER 20 |
|
STZ100-3.7Z |
3.7 kw, 220V/380V, 400 Hz, 24000 RPM |
ER 20 |
|
STZ125-4.5Z |
4.5 kw, 220V/380V, 400 Hz, 24000 RPM |
ER 25 |
|
STZ125-5.5Z |
5.5 kw, 220V/380V, 400 Hz, 24000 RPM |
ER 25 |
|
STZ125-6.0Z |
6.0 kw, 220V/380V,400 Hz, 24000 RPM |
ER 25 |
|
STZ125-7.5Z |
7.5 kw, 380V, 400 Hz, 24000 RPM |
ER 32 |
Usually 5.5 kw, 6.0 kw, 7.5kw CNC Water Spindle can be highly used for engraving on natural stones, glasses, and ceramics.
Customers’ demand is always put first by WHD.
Applications:
· Woodworking
· Plastic Acrylic
· Stone
Additional Information:
· Payment Terms: T/T
· Port of loading: Shanghai,China
· Package: Foam Box in Carton Box with Strong Strips across Carton Box.
